Digital Signal Processing (DSP) Filtering & Signal Smoothing in MatDeck

Overview

MatDeck provides a comprehensive suite of Digital Signal Processing (DSP) tools focused on filter design, signal smoothing, adaptive filtering, and real-time signal conditioning. Designed for engineers, researchers, and data scientists, MatDeck integrates these capabilities within its live-document environment—enabling interactive development, visualization, and deployment.

The DSP filtering and smoothing modules leverage both built-in MatDeck functions and industry-standard libraries (e.g., SciPy, NumPy via embedded Python), supporting both offline analysis and real-time hardware-acquired signal processing.

Key Filtering Capabilities

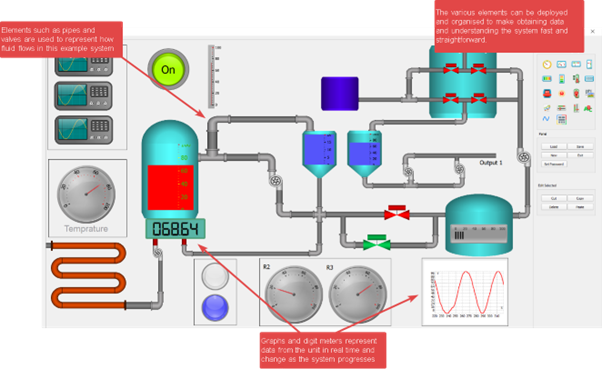

MatDeck SCADA recieving and displaying data in realtime

1. Classical Filter Families

• Butterworth Filters — Maximally flat magnitude response in passband.
• Chebyshev Type I & II — Equiripple in passband (Type I) or stopband (Type II).
• Inverse Chebyshev — Sharp roll-off with monotonic passband.
• Elliptic (Cauer) Filters — Fastest transition with ripples in both bands.
• Finite Impulse Response (FIR) — Linear phase designs via windowing or optimal methods.
• Infinite Impulse Response (IIR) — Efficient recursive implementations.

2. Filter Types Supported

• Low-pass (LP), High-pass (HP)
• Band-pass (BP), Band-stop (BS/Notch)

3. FIR Design Methods

• Window-based design (e.g., Hamming, Blackman, Kaiser)
• Frequency-sampling method
• Optimal (equiripple) design via Parks-McClellan algorithm

4. IIR Implementation Tools

• Direct-form I/II transposed structures
• Biquad (second-order section) cascades for numerical stability
• Zero-pole-gain and state-space representations

Signal Smoothing & Enhancement Toolkits

Beyond classical filtering, MatDeck includes specialized GUI-driven toolkits for empirical signal conditioning and smoothing:

• Signal Statistics Form — Compute mean, variance, skewness, kurtosis for trend analysis.
• Signal Resampling Form — Upsample/downsample with anti-aliasing filtering.
• Envelope Detection — Hilbert transform-based amplitude envelope extraction.
• Decimation & Interpolation — Multirate processing for efficient bandwidth adaptation.
• Correlation & Convolution Toolkit — For template matching, echo cancellation, and system identification.
• Waveform Toolkit — Generate and shape test signals (sine, square, sawtooth, chirp, etc.) for filter validation.

Adaptive Filtering

MatDeck supports real-time adaptive signal processing, critical for noise cancellation, echo suppression, and system identification:

Available Adaptive Filter Examples

• Adaptive Filters — General framework implementation.
• LMS (Least Mean Squares) and NLMS algorithms (implied via examples and MD Script/Python integration).
• Real-time applications integrated with hardware (e.g., Advantech DAQ).

Adaptive filters are programmable using MatDeck’s C++-style script or embedded Python, allowing full customization of learning rate, filter length, and convergence criteria.

Real-World Application Examples

ECG Signal Processing

• Baseline wander removal (high-pass filtering)
• Powerline interference cancellation (notch filtering at 50/60 Hz)
• QRS enhancement via band-pass filtering

PPG (Photoplethysmogram) Signal Conditioning

• Noise reduction using FIR/IIR filters
• Smoothing for heart-rate variability (HRV) analysis
• Integration with database for signal logging and batch processing

Vibration Analysis

• Envelope detection for bearing fault diagnosis
• Order tracking and resampling for rotating machinery
• Adaptive filtering for noise reduction in operational environments

Audio Equipment Testing

• Chirp signal generation + inverse filtering for equalizer calibration
• Microphone frequency response smoothing and compensation
• Graphic & inverse equalizer implementation via FIR filter banks

Interactive Development & Deployment

Drag-and-Drop GUI Forms for Filtering

• Filtering Toolkit for FIR (by wind/freq) — GUI-based FIR design with real-time magnitude/phase response visualization.
• Filtering Toolkit for FIR (optimal) — Optimize stopband/transition specs interactively.

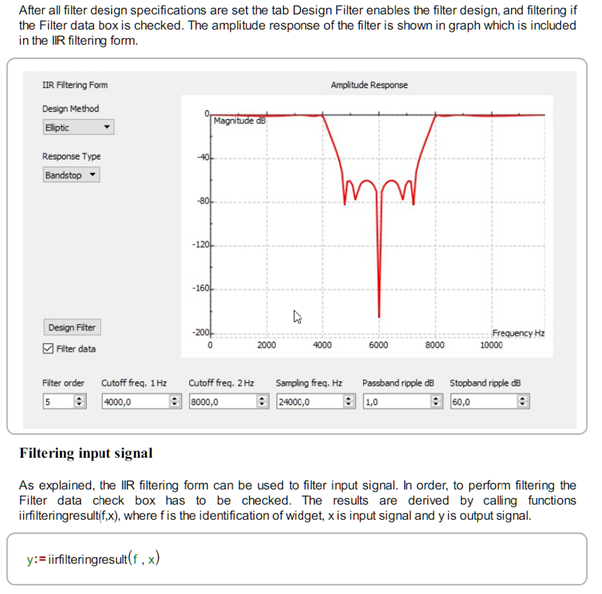

• Filtering Toolkit for IIR — Select filter type, order, cutoffs, and visualize poles/zeros.
• Signal Transform Toolkit — Apply FFT, DCT, wavelet transforms pre/post filtering.

Live Document Integration

All filtering operations can be embedded directly into LabDeck Notes — interactive documents combining:

• Mathematical notation (WYSIWYG formula editor)
• Executable code blocks (MD Script, Python)
• Dynamic 2D/3D plots (zoomable, exportable)
• Parameter sliders for real-time filter tuning

Deployment Options

• Export filter coefficients to C/Python
• Compile to standalone Windows .exe (via Deploy EXE engine)
• Integrate into SCADA or virtual instrumentation dashboards

Underlying Technology Stack

• ArrayFire acceleration — GPU-accelerated FFT and filtering (CUDA/OpenCL backends)
• Embedded Python — Direct access to SciPy’s signal module (scipy.signal.butter, lfilter, savgol_filter, etc.)
• Native MD Script engine — High-performance C++-style syntax for real-time loops
• Hardware integration — Seamless filtering of live streams from LabJack, Advantech, ICP DAS, etc.
