Data Acquisition Solutions

What is Data Acquisition?

Data Acquisition (DAQ) encompasses electronic systems that collect, process, and analyze sensor data for specific applications. These systems integrate various sensors, hardware components, and software solutions to monitor, control, and optimize industrial processes in real-time.

MatDeck revolutionizes data acquisition with its advanced software architecture, providing an intuitive interface for diverse electronic hardware applications. Our platform combines Python-based control systems, virtual instrumentation, and ready-made widgets for seamless integration with custom electronics and OEM products.

Key Benefits

MatDeck delivers comprehensive data acquisition capabilities at an affordable price point, featuring both analog-to-digital and digital-to-analog converters, timers, counters, I/O ports, buses, and TCP/IP communication—all implemented with simplicity and efficiency in mind.

Core DAQ Features

📊Classical DAQ & Control

Traditional measurement and control systems with advanced digital signal processing capabilities.

🖥️Virtual Instrumentation

Drag-and-drop panel creation with no coding required, featuring comprehensive GUI application builders.

🔧SCADA Integration

Complete SCADA solutions with visual design tools and both MD Script and Python compatibility.

🌐Communication Protocols

Extensive protocol support including Modbus, Profibus, TCP, Serial ASCII, and Serial RTU.

⚡High-Performance Processing

GPU acceleration, advanced FFT, DSP functions, and AI modeling capabilities.

📱Application Deployment

Build and distribute unlimited Windows applications royalty-free with EXE generation.

SCADA & Virtual Instrumentation

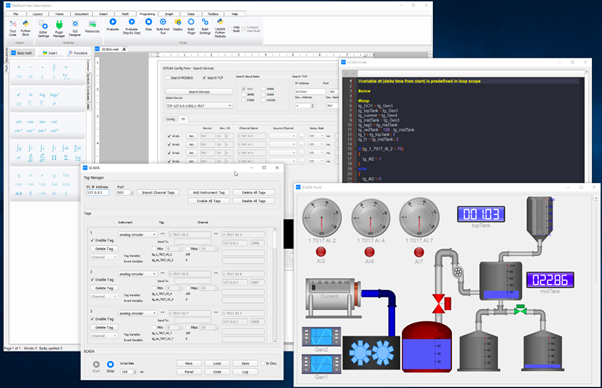

Professional SCADA Data Acquisition Interface

SCADA Toolbox

Our integrated SCADA solution enables centralized device communication with effective virtual monitoring tools. The SCADA Toolbox combines panel management, tag configuration, and built-in scripting within a single interface while maintaining full access to MatDeck's comprehensive feature set.

Virtument - Virtual Instrumentation Panel

Virtument provides real-time device communication through visual components including digital meters, sliders, tanks, and gauges. This no-code solution requires no programming knowledge—users simply configure connections and add virtual instruments with point-and-click simplicity.

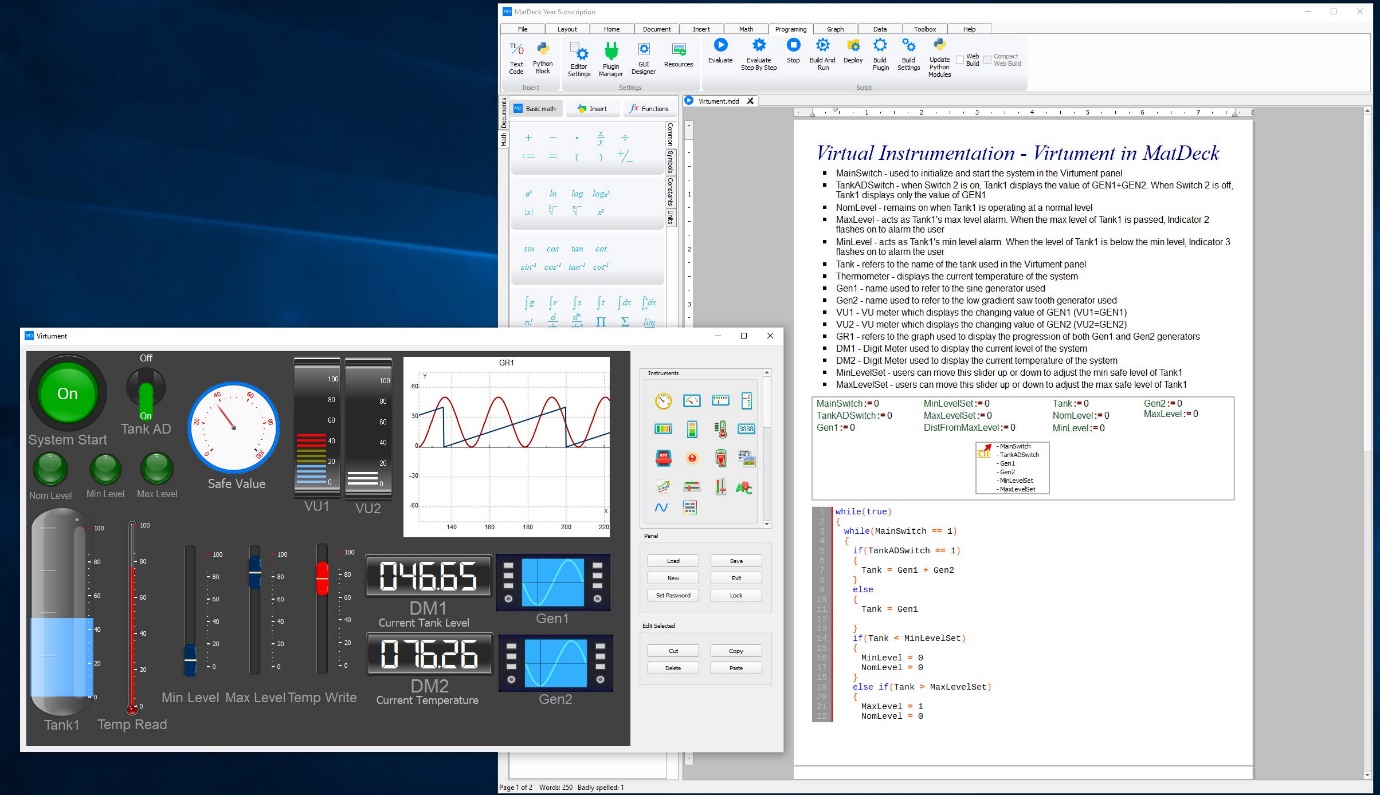

Virtual Instrumentation Panel communicating with a MatDeck Document

Advanced Capabilities

Digital Signal Processing

Comprehensive DSP functions including signal smoothing, PID control, vibration analysis, and wavelets.

Hardware Integration

Native support for Advantech, ICP DAS, LabJack, and other leading hardware manufacturers.

Real-Time Processing

Simultaneous execution and communication with live document editing capabilities.

Data Management

Advanced data logging, database integration, and Excel interface for comprehensive data handling.

AI Integration

Artificial intelligence modeling and pattern recognition for predictive analytics.

Parallel Processing

Multi-core CPU and GPU acceleration for high-performance computing tasks.

Hardware & Protocol Support

Supported Protocols

MatDeck supports a comprehensive range of communication protocols, from basic serial communications to high-speed industrial networks:

UART/RS232

RS485

Ethernet

USB

Modbus

Profibus

TCP/IP

WiFi

Bluetooth

ZigBee

PCI/PCIe

EtherCAT

Hardware Components

Data acquisition systems consist of multiple components working together to provide comprehensive measurement and control capabilities. Input channels handle analog and digital signals, trigger inputs, and interrupt processing, while output channels manage process control through DACs, PWM drivers, power drivers, and relays.

Performance Specifications

Our systems support resolution ranges from 8 to 32 bits with sampling rates from a few Hz to tens of GHz, accommodating both precision measurement and high-speed data acquisition requirements.

AI-Enhanced Data Acquisition

Artificial Intelligence integration transforms traditional data acquisition into intelligent systems capable of pattern recognition, predictive analytics, and autonomous decision-making. AI algorithms analyze process parameters to identify trends, predict future conditions, and optimize system performance.

Pattern Recognition

Identify complex patterns in multi-dimensional sensor data for predictive maintenance and quality control.

Automated Protocol Management

AI-driven communication protocol selection and device configuration optimization.

System Status Analysis

Real-time system condition assessment and anomaly detection across multiple data channels.

Process Control Intelligence

Adaptive control systems that learn from historical data to optimize process parameters.
